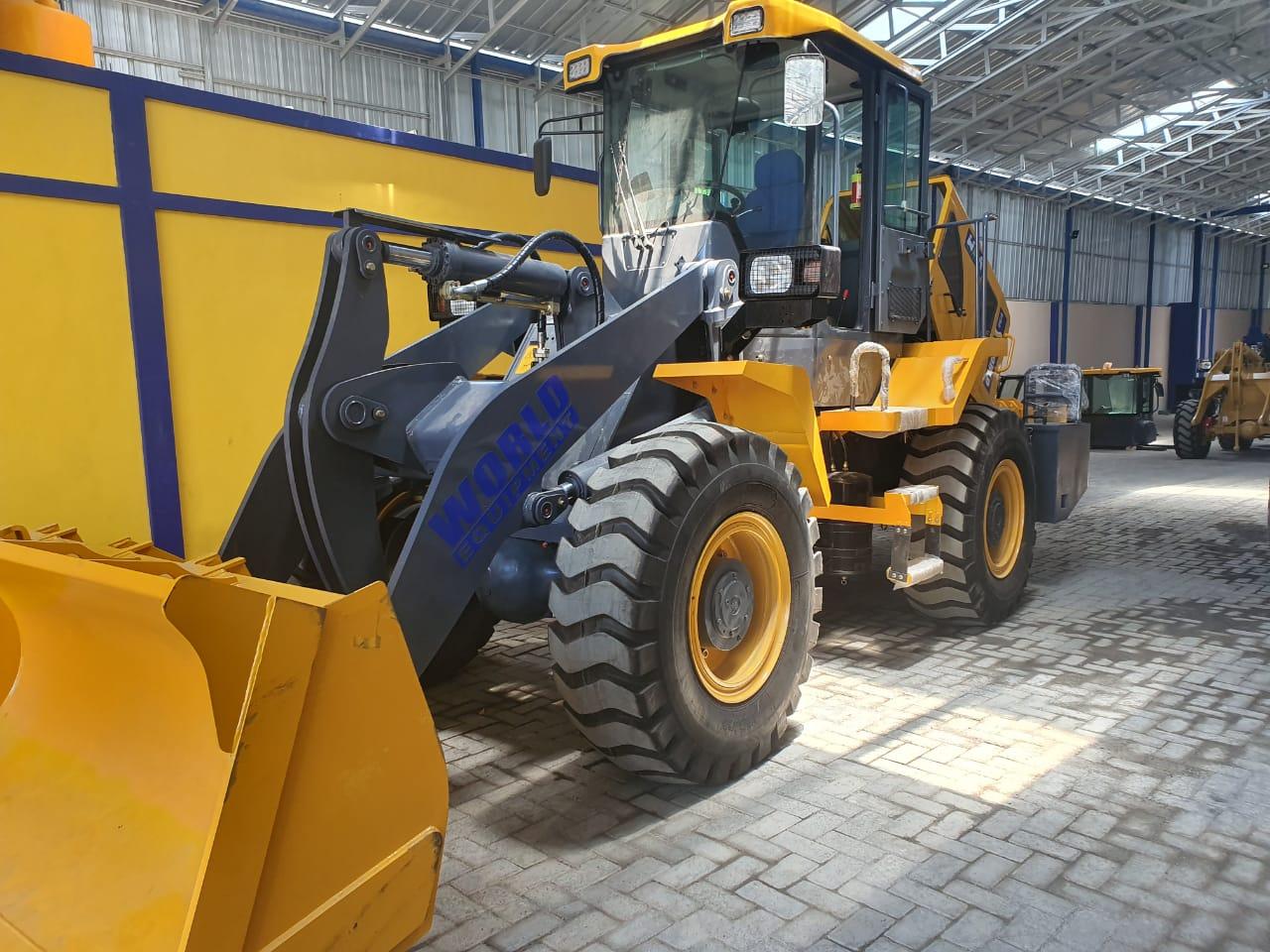

FITUR PRODUK
Energy-saving， money-saving and lower oil-consumption per hour than that of similar products
Good strength, sturdiness and durability, low operating cost and easy to keep maintenance;
Fully embody the people-oriented humanized design concept, improving the working environment of operators;
A balanced layout, advanced design matching, superior performance, strong mobility and high efficiency。
| 1 | Bucket Capacity | 1.8M³ | |||||||
| 2 | Rated Load | 3200kg | |||||||
| 3 | Travelling Speed | ||||||||
| Forward 1st | 0-10.8km/h | ||||||||
| Forward 2nd | 0-32.5km/h | ||||||||
| Reverse 1st | 0-14.5km/h | ||||||||
| 4 | Max. Traction | 97kN | |||||||
| 5 | Max. Break Out Force | 100kN | |||||||
| 6 | Min. Turning Radius (outside tires) | 5376mm | |||||||
| 7 | Max. Dumping Height | 3060mm | |||||||
| 8 | Max. Dumping Reach | 1008mm | |||||||
| 9 | Total Hydraulic Cycle Time | ≤10.3s | |||||||
| 10 | Full Bucket Lifting Time | ≤5.6s | |||||||
| 11 | Wheel Base | 2750mm | |||||||
| 12 | Tread Width | 1800mm | |||||||
| 13 | Dimensions (L*W*H) | 6970*2460*3286mm | |||||||
| 14 | Min. Clearance Over Ground | 360±20mm | |||||||
| 15 | Operating Weight | 10000kg | |||||||
| Diesel Engine | |||||||||
| 1 | Model 型号 | YuChai YC6B125 | Duetz TD226B | Cummins 6BT5.9 | |||||
| 2 | Type 型式 | Direct injection, water cooling, 4 strokes | |||||||
| 3 | Rated Output | 92kW | 92kW | 97kW | |||||
| 4 | Rated Speed | 2200rpm
2200rpm 2200rpm |
|||||||
| 5 | Max. Torque | 460N.m | 500N.m | 560N.m | |||||
| Transmission | |||||||||
| 1
|
Hydraulic Torque Converter Model | Single stage, two phase, four components | |||||||
| 2 | Transmission Type | 2 forward and 1 reverse gears/hydraulic power shift, planet type | |||||||
| 3 | Forward 1st | 0-10.8km/h | |||||||
| 4 | Forward 2nd
|
0-32.5km/h | |||||||
| 5 | Reverse 1st | 0-14.5km/h | |||||||
| 6 | Max. Permissible Temp | 120℃ | |||||||
| Axle & Tyre | |||||||||
| 1 | Drive System | 4 wheel drive | |||||||
| 2 | Type of main Reducer and Gear Ratio | Spiral bevel gear, single stage, 4.375 | |||||||
| 3 | Type of hub Reducer and Gear Ratio | Planet gear, 4.75 | |||||||
| 4 | Tire | 17.5-25 | |||||||
| Hydraulic System | |||||||||
| 1 | Working Pump Type | Gear Pump | |||||||
| 2 | System Working Pressure | 16MPa | |||||||
| 3 | Lifting Cylinder Bore * Stroke | 125*816mm | |||||||
| 4 | Tilting Cylinder Bore * Stroke | 140*553 mm | |||||||
| 5 | Steering Pump Type | Gear pump | |||||||
| 6 | Steering Cylinder Bore*Stroke | 80*340mm | |||||||
| 7 | Max. Steering Angle | ±360 | |||||||
| Steering System | |||||||||
| 1 | Type | full hydraulic power steering system | |||||||
| 2 | Steering Pump Type | CBY2050 (reverse) | |||||||
| 3 | Max. Working Pressure | 10MPa | |||||||
| 4 | Steering Cylinder Bore x Stroke | 80x340mm | |||||||
| 5 | Max. Steering Angle | ±36º | |||||||
| Brake System | |||||||||
| 1
|
Service Brake | Caliper disc brake, air over oil activate,4 wheel brake | |||||||
| 2 | Parking Brake | Inner expanding shoe brake, drum type, hand control | |||||||
| Oil Capacity | |||||||||
| 1 | Fuel Tank | 150L | |||||||
| 2 | Engine Oil | 15L | |||||||
| 3 | Transmission | 27L | |||||||
| 4 | Hydraulic Oil Tank | 140L | |||||||
| 5 | Transaxle | 30L |
|||||||
